Home / Store / 2013 XRT 1550 & Carryall 295 / Front Differential (Output Components)

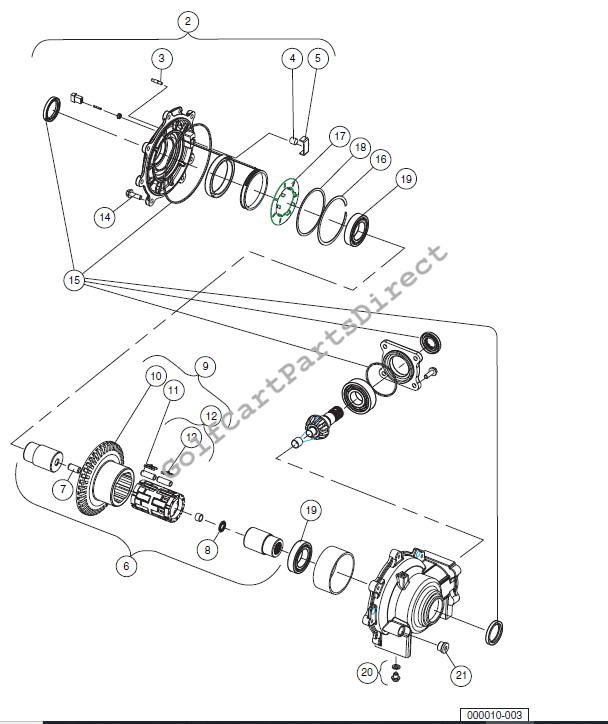

Front Differential (Output Components)

	Item	Price	Qty Required	Diagram ID	Add
Differential, Front * (includes items 2-21)	104025601	$1,689.40	1	1
Kit, Assy, Output Cover Plate (includes items 3-5)	102438201	$324.20	1	2
Set Screw, #10-24 UNC-3A with Patch	102439001	-	1	3	-
Thrust Button	102439101	$4.90	1	4
Thrust Plate	102439201	-	1	5	-
Kit, Assy, Race Output Hub (includes items 7-8)	102438301	-	1	6	-
Pin, Dowel	102439401	-	1	7	-
Bearing, Needle	102439501	-	1	8	-
Kit, Assy, Clutch (includes items 10-12)	102438401	-	1	9	-
Clutch Hsg/Ring Gear, Machined	102439601	-	1	10	-
Kit, Roller (contains 14 rollers)	102439801	$48.16	1	11
Kit, Assy, Roll Cage (includes item 13)	102439901	$136.89	1	12
Kit, H-Clip Spring (contains 14 clips)	102439701	-	1	13	-
Kit, Bolt (contains 7 bolts)	102438501	$14.64	1	14
Kit, Minor Repair (contains oil seals and O-rings)	102438601	$34.46	1	15
Retaining, Ring Internal	102438701	$10.02	1	16
Plate, Armature	102438801	-	1	17	-
Shim, Armature, Plate	102438901	-	1	18	-
Bearing, Ball	102439301	$44.96	12	19
Kit, Assy, Drain Plug	102440101	$18.36	1	20
Plug, Oil Fill	102440301	$19.69	1	21
